Tap the bottom-right corner of almost any modern laptop touchpad and you get a right-click. Tap the bottom-left and you get a left-click. There are no visible buttons separating those two regions — the split exists purely in software, mapped over a single mechanical surface. Understanding how click zones are defined, and how pressure detection determines whether a contact counts as a click at all, reveals why a touchpad can feel dramatically different to use even when the hardware dimensions are identical.
Clickpads vs button pads: the mechanical difference
Older laptops used a button pad design: discrete physical left and right buttons sat below the touchpad surface, each with its own separate switch. The touchpad itself was a sensing-only surface, and button input came from a different mechanism entirely.

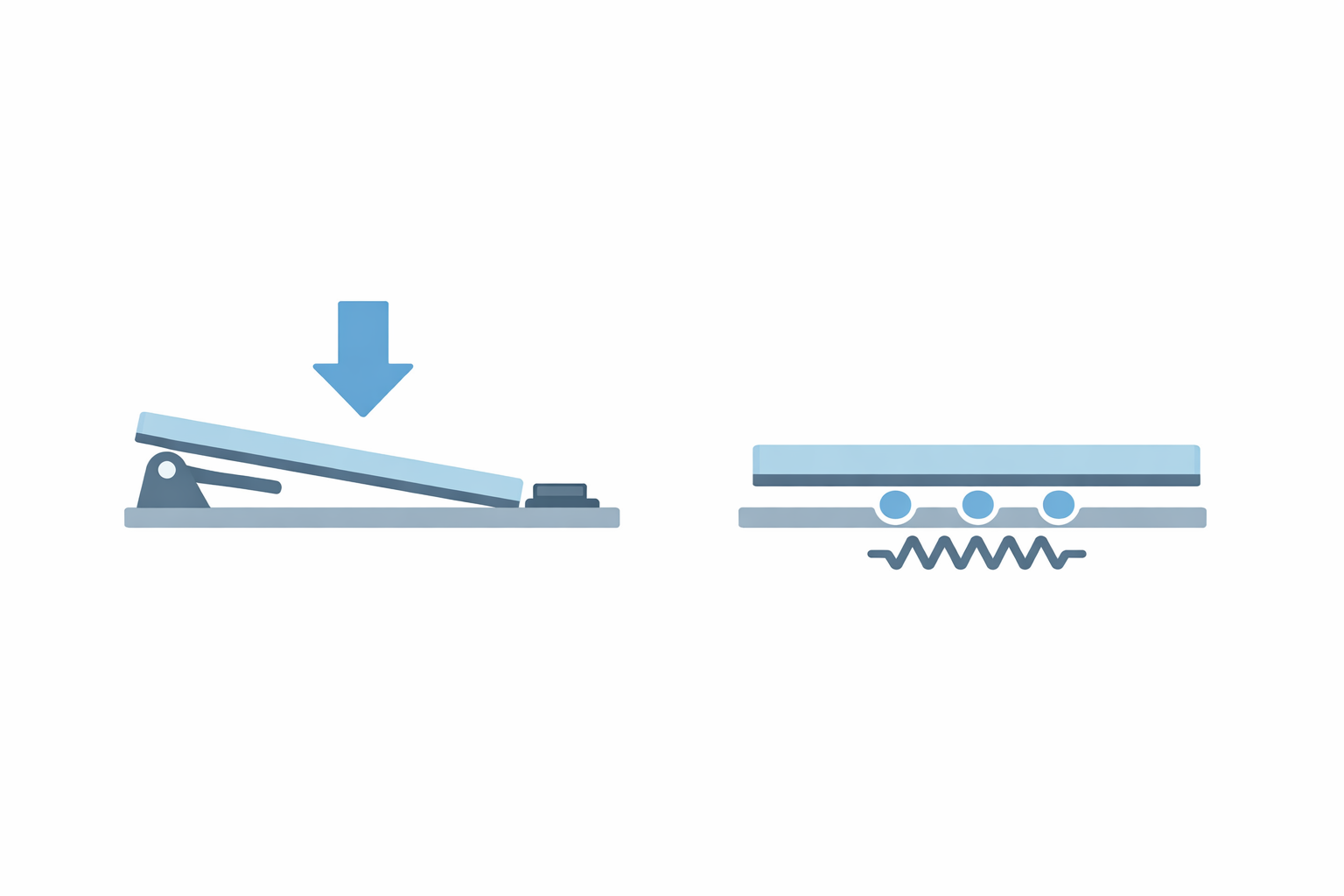

The clickpad design, which now dominates the market, removes those separate buttons. The entire touchpad surface is mounted on a hinge mechanism — typically a single pivot point near the top edge or along the back — so that pressing anywhere on the surface depresses a switch beneath. There are no left and right switches. A single switch fires for every physical press, and the OS decides what kind of click it was based solely on where on the surface that press occurred.
The pivot placement matters for the physical feel. Because the hinge is at the top, the bottom of the pad travels farthest when pressed, making clicks easiest near the bottom edge. Pressing near the top on many clickpads registers little to no travel — the pad barely moves there. This is an inherent geometry trade-off, not a defect: it concentrates the mechanical action near the natural resting position of the thumb.
How the right-click zone is defined
On a Windows Precision Touchpad, the right-click zone is defined as a percentage of the pad's physical dimensions, not in absolute pixels. The defaults sit at 25% of the pad height from the bottom and 50% of the pad width from the right edge. That means the right-click zone covers the bottom-right quarter of the surface by default. Microsoft exposes these values as configurable registry entries (RightClickZoneHeight and RightClickZoneWidth), and as of Windows 11 build 26027 they can also be queried and set programmatically via the SystemParametersInfo API — a documented extension that lets OEM software adjust the zones without registry editing.
The zone mirrors horizontally for left-handed button-swap configurations: when the user has swapped left and right mouse buttons in Windows, the right-click zone shifts to the bottom-left corner so that the physical action still matches the expected output.
Two-finger tap is an alternative right-click method that works everywhere on the pad surface, not just in the corner zone. This matters most on small touchpads where the dedicated right-click zone is cramped.
Pressure detection: mechanical switch vs. haptic pad
A clickpad's physical switch gives a binary output — it is either depressed or not. Pressure sensitivity enters the picture through two very different technologies depending on the hardware generation:
- Force-sensing clickpads (such as Synaptics ForcePad) embed per-finger pressure sensors across the touchpad surface. The firmware reports how hard each contact is pressing, enabling applications to differentiate a light touch from a firm press. This data is available at the hardware level, independent of whether the surface physically clicks.
- Haptic (non-moving) touchpads take this further by removing the mechanical hinge entirely. Apple's Force Touch trackpad — introduced with the MacBook in 2015 — uses strain gauges beneath a rigid glass surface to measure force, then fires an electromagnetic linear actuator (the Taptic Engine) to simulate the physical click sensation. The surface never moves. The "click" you feel is an actuator pulse timed to your press, not physical travel. This design allows adjustable click firmness in software and enables a two-stage "Force Click" at higher pressure.
- Standard clickpads without force sensors still expose a configurable sensitivity threshold on Windows. The
ClickForceSensitivityregistry value (available from Windows 11 build 26027) maps to a "Button Press Threshold" HID feature report on supported hardware, adjusting how hard the surface must be pressed before the OS registers a click event — a 0–100 range with a user-facing setting in Windows Settings.
Tap-to-click vs physical click: the distinction that matters
Separate from all of the above, most touchpads distinguish between a tap (light capacitive contact, no physical press) and a click (actual pad depression or force threshold exceeded). Both can produce a left- or right-click event, but they travel through different detection paths:
- A tap is detected by the gesture engine — a contact that appears, stays under the movement threshold (10 px in the tester above's implementation), and disappears in under 500 ms. Zone-based logic determines whether it is a left or right tap.
- A physical click is signaled by the hardware switch (or force threshold) directly. The OS receives a button-down event that is independent of any gesture classification. This path is more reliable for applications that need unambiguous click input, because it bypasses the gesture engine's timing thresholds entirely.
One limitation to be aware of: a web-based tool sees only what the browser forwards. The tester above records left-click and right-click events as color-coded dots on the canvas and increments the click counters in the Virtual Trackpad panel, but it cannot distinguish a tap-to-click from a physical click — both arrive as identical pointerdown / pointerup events at the browser level. The distinction only exists inside the OS input stack.
Check yourself: try clicking in the bottom-right corner of the test canvas with the tool above and compare it with a two-finger tap anywhere on the canvas. Both should register as right-click events (orange dots) — confirming that zone-based and gesture-based right-click paths both route through to the same browser event.
